艾坦 Divider 300 TG Air
高質感、創新視界

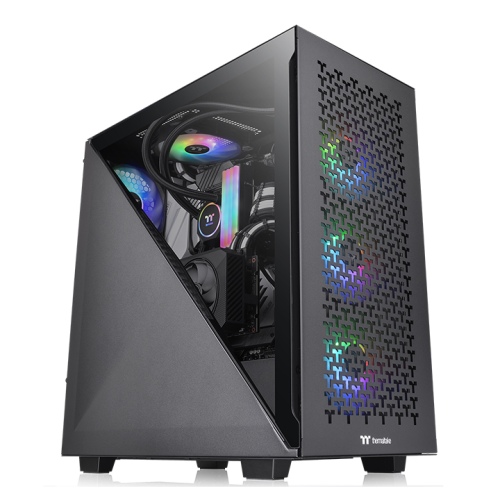

曜越科技全新推出的艾坦 Divider系列機殼，結合客製化和部分開放式機殼元素。艾坦 Divider 300 TG Air強化玻璃中直立式機殼最醒目的特色為左側對稱的兩面三角形面板和強化玻璃，易於安裝與拆卸的同時也兼顧展現內部系統的便利性。前方大面積網孔面板設計除了造型新穎外，更強化前方進氣效果，大幅度提稱整體機殼散熱通風表現。艾坦 Divider 300 TG Air強化玻璃中直立式機殼為新一代特殊設計的機種，一般的PC使用者、PC愛好者或玩家們絕對會愛不釋手。
- 圖片僅供參考
TT Premium
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.高質感流線型機身搭配左側兩面三角形面板和強化玻璃，為艾坦 Divider 300 TG Air強化玻璃中直立式機殼最特別的設計。三角形面板與強化玻璃可依喜好安裝與拆卸，這種半開放式與客製化的設計提供使用者不同的裝機體驗。
艾坦 Divider 300 TG Air前方為大面積網孔面板，可大幅度提升整體散熱效果。
內建電源保護殼設計讓玩家擁有更多理線空間，能更專業打造整齊的系統。GPU支架配件除了供GPU直立擺放使用外，也幫助減少GPU帶給PCI-E槽的重量。
特殊GPU兩種擺放方式設計，可採垂直或水平模式安裝GPU。
- 圖片僅供參考
防塵濾網大面積覆蓋，上方和側邊面板內磁吸式濾網加上底部和前方的扣拉式濾網，方便玩家系統安裝並可降低機殼內部灰塵堆積。
- 圖片僅供參考
艾坦 Divider 300 TG Air散熱通風設計極佳。前方網孔面板和左側玻璃鐵板間的空隙，提供絕佳進氣空間，右側和上方開孔處設計依使用者需求安裝進氣或出氣風扇，搭配後方的標準散熱風扇。
- 圖片僅供參考
為了讓消費者更了解艾坦 Divider 300 TG Air強化玻璃中直立式機殼待機和滿載時的溫度表現，我們特別將一體式水冷散熱器裝在前方，並觀察到機殼前方區域在待機和滿載時溫度表現極佳。使用Testo 885-2 Thermal Imaging Camera分別拍攝待機和滿載兩個測試環境下機殼的熱影像圖。滿載測試環境: 同時開啟AIDA64 Extreme Portable和FurMark ASUS ROG Edition兩個軟體並運作30分鐘所得結果。
-
Idle
Full-load
Specification
| Motherboard | ASUS ROG MAXIMUS XI HERO |
|---|---|
| CPU | Intel® Core™ i5-9600K (TDP 95W) |
| GPU | MSI GeForce RTX™ 3090 VENTUS 3X 24G OC |
| RAM | Floe RC240 CPU & Memory AIO Liquid Cooler (Four sticks of DDR4 3200 8G) |
| PSU | Toughpower GF2 ARGB 650W |
| CPU Cooler | Floe RC240 CPU & Memory AIO Liquid Cooler |
| Fans | Pure ARGB 120mm fans up to 4 (Front x 3, Rear x 1) |
| Software | AIDA64 Extreme Portable, FurMark ASUS ROG Edition |
|---|---|
| Full load | 30 min |
| Camara | Testo 885-2 Thermal Imaging Camera |
CPU Cooler
Max height 145mm
Motherboard
ATX, Micro ATX, Mini ITX
PSU
Max length180mm (with HDD Cage)
220mm (without HDD Cage)
VGA
Length limitation360mm (with radiator)
390mm (without radiator)
HDD
3.5” HDD x 2or
2.5” SSD x 2
HDD
2.5” SSD x 2HDD
2.5” SSD x 3- 120mm
- 140mm
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
I/O介面設計上建置兩組超高速USB 3.0和一組USB 3.2 (Gen 2) Type C傳輸埠為您的各種裝置提供高效能傳輸速度。
從側版、支架到安裝插槽的全模組化設計，讓玩家能完整享受從零開始組裝的樂趣，盡情打造專屬自己的獨特系統。
| 120 Series | 240 Series | 360 Series | 140 Series | 280 Series | |
|---|---|---|---|---|---|
| Front | ● | ● | ● | ● | ● |
| Right | ● | ● | - | - | - |
| Rear | ● | - | - | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| Front | 3 | 2 | - |
| Top | 1 | 1 | - |
| Right | 2 | - | - |
| Rear | 1 | - | - |
| 120mm | 140mm | 200mm | |
|---|---|---|---|
| PURE FAN Series | ● | ● | - |
| Riing FAN Series | ● | ● | - |
| 型號 | CA-1S2-00M1WN-02 |
|---|---|
| 系列 | 艾坦 Divider |
| 機種 | Divider 300 TG Air |
| 機型 | Mid Tower |
| 尺寸 (高*寬*深) |
475 x 220 x 461 mm (18.7 x 8.66 x 18.1 inch) |
| 重量 | 8.18 kg / 18.03 lbs. |
| 側窗 | Tempered Glass x 1 |
| 顏色 | Black |
| 材質 | SPCC |
| 散熱系統 |
Front(intake): 120 x 120 x 25 mm Standard fan (1000rpm, 16 dBA) x 1 Rear(exhaust): 120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1 |
| 儲存裝置 -Accessible -Hidden |
2 x 3.5”, 5 x 2.5” or 7 x 2.5” |
| PCI 插槽 | 7 (Rotatable Patented Design) |
| 適用主機板 | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O 連接埠 | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| 電源供應器 | Standard PS2 PSU (optional) |
| 風扇支援 |
Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 1 x 120mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm |
| 水冷排支援 |
Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right (M/B Side): 1 x 240mm (vertical-installed GPU recommended), 1 x 120mm Rear: 1 x 120mm |
| 備註 |
CPU cooler height limitation: 145mm VGA length limitation: 360mm(With radiator) 390mm(Without radiator) PSU length limitation: 180mm (With HDD Cage) 220mm(Without HDD Cage) |
使用手冊
- 檔名
- 描述
- 尺寸
- Version
- Release Date
-
Divider 300 TG Air User Manual
- user manual
- 2021-08-11
